The MultiPressure system saves energy by recovery and reuse of secondary energy without impacting the overall plant performance.
Introduced by Vogelbusch in the 1990s and since continuously improved, MultiPressure column systems are utilized in alcohol production for an efficient use of process energy.

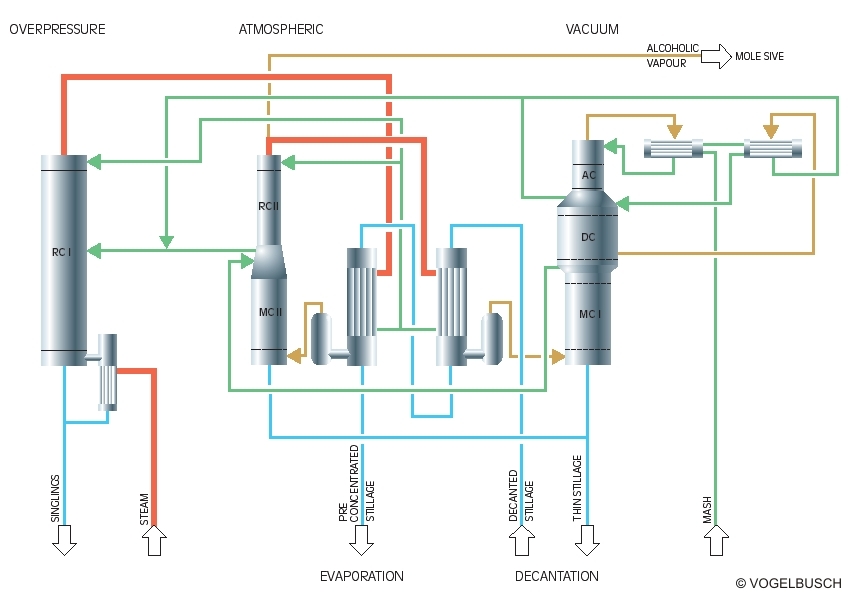

The advanced Vogelbusch MultiPressure system operates a number of columns at different pressure levels. The finely-balanced application of vacuum, atmospheric and overpressure allows to reuse the heat input multiple times.
This brings about a significant reduction in live steam consumption, thus generating equivalent (cost) savings in the energy required to produce it.
Vogelbusch offers highly specialized custom solutions that optimize process economics for compliance with precise specifications for product quality and available steam pressures.
Raw alcohol is distilled from the fermentation mash and through further separation steps rectified and concentrated. The careful design of the distillation and rectification ensures not only the desired product quality, but brings the energy consumption of the MultiPressure system down to
By thermal integration with other process units, the plant’s ground-breaking energy-saving properties are boosted further still.

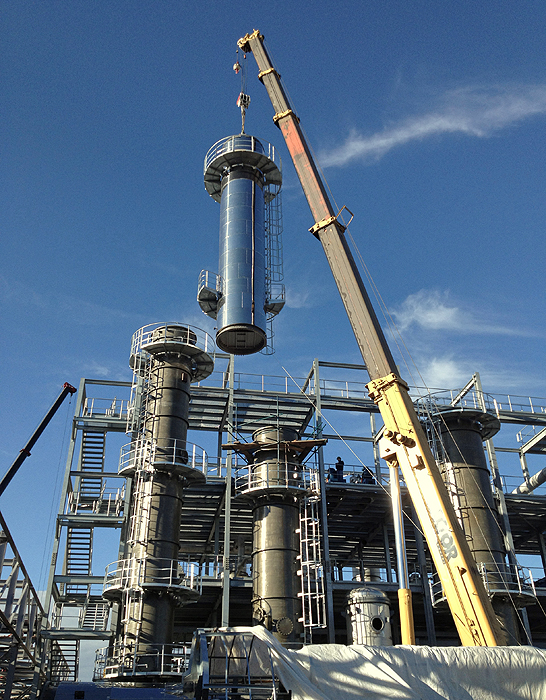

In addition to our engineering services we supply equipment ranging from trays - as a process-critical component - to complete distillation/rectification facilities set up on EPC basis.
The Promaíz plant produces bioethanol from corn which is used as fuel additive in the local markets. Besides the technology package for the complete plant and detailed planning of piping and…
Vogelbusch was employed by COFCO Bioenergy Zhaodong to build an energy efficient distillation, rectification and dehydration system with the aim to replace two existing old and energy intensive units.
The order's…
Almagest opted for Vogelbusch in 2009 to produce top quality extra neutral alcohol with the highest purity and organoleptic demands, to be used in the production of alcoholic beverages. The…
Abengoa Bioenergy reached sustained capacity at their 88 million gallons per year (950,000 liters per day), state-of-the-art fuel ethanol facility located in Madison, Illinois in February 2010.
This is the third…
Renowned starch manufacturer Lantmännen Reppe is one of the largest Swedish alcohol distillers too. The MultiPressure distillation unit in Lidköping, commissioned in 2010, can produce some 50,000 liters of high…
Abengoa Bioenergy reached sustained capacity at their 88 million gallons per year (950,000 liters per day), state-of-the-art fuel ethanol facility located in Mt. Vernon, Indiana in January 2010 after 18…
Tharaldson Ethanol started up their state-of-the-art fuel ethanol facility located in Casselton, North Dakota in 2009.
The plant utilizes technology licensed by VOGELBUSCH USA Inc., including the Vogelbusch MultiCont© continuous fermentation…
Inbicon has developed a proprietary process for the conversion of wheat straw. Complementing this biomass conversion process Inbicon has opted for sound and energy efficient technology from Vogelbusch for part…
Penford Products Company successfully started up their state-of-the-art fuel ethanol facility in May 2008. The plant utilizes technology licensed by VOGELBUSCH USA Inc. and has a nameplate capacity of 450,000…
The bioethanol plant of Lantmännen Agroetanol AB utilises process technology licensed by Vogelbusch for distillation and dehydration. The proprietary MultiPressure system considerably reduces the steam consumption compared to traditional distillation…
The plant was built using know-how provided by VOGELBUSCH USA Inc., including the Vogelbusch MultiCont© continuous fermentation process, and has a nameplate capacity of 908,000 liters per day. The facility…
Abengoa Bioenergy successfully started up their state-of-the-art fuel ethanol facility located in Ravenna, Nebraska in September 2007. The plant utilizes technology licensed by VOGELBUSCH USA Inc., including the Vogelbusch MultiCont©…
The Chief Ethanol Fuels facility is utilizing Vogelbusch-licensed technology. In 2007, a third molecular sieve drying system was designed and installed, raising operating capacity to 832,000 liters per day.
The cooperation…
The plant now operated by Razi (formerly Sugar Cane By-Products Corporation) was designed for a daily capacity of 110,000 liters of high quality pharmaceutical alcohol from cane molasses complying with…
VOGELBUSCH USA Inc. started up the ethanol plant of Cornhusker Energy in spring 2006, with a production capacity of 450,000 liters per day of bioethanol from corn.
The plant employs a…
The 800,000 liters per day plant of CropEnergies, a unit of German Südzucker group, is designed for multiple grain sources together with by-products of beet sugar processing. The plant and…
In March 2004 the molecular sieve unit at the Aventine Renewable Energy plant was brought on stream. With a rated capacity of 1.2 million liters per day (110 mm gallons…
Located in Jilin City in Northeast China, this production line for bioethanol was officially commissioned in November 2003 after an implementation period of 22 months. The plant produces 300,000 tons…
The fine alcohol plant of Harbin Winery, a Chinese producer of potable alcohol from corn, was upgraded by Vogelbusch in several steps. The client required specifically high alcohol quality in…
The plant in Leopoldov produces extra neutral alcohol for the company's well established range of beverage brands.
30,000 liters of high quality alcohol are distilled per day from alcoholic mashes from molasses…
